Klass 6 GL
Klass GL
10 kW
Wood stove
Klass 6 GL
Klass GL

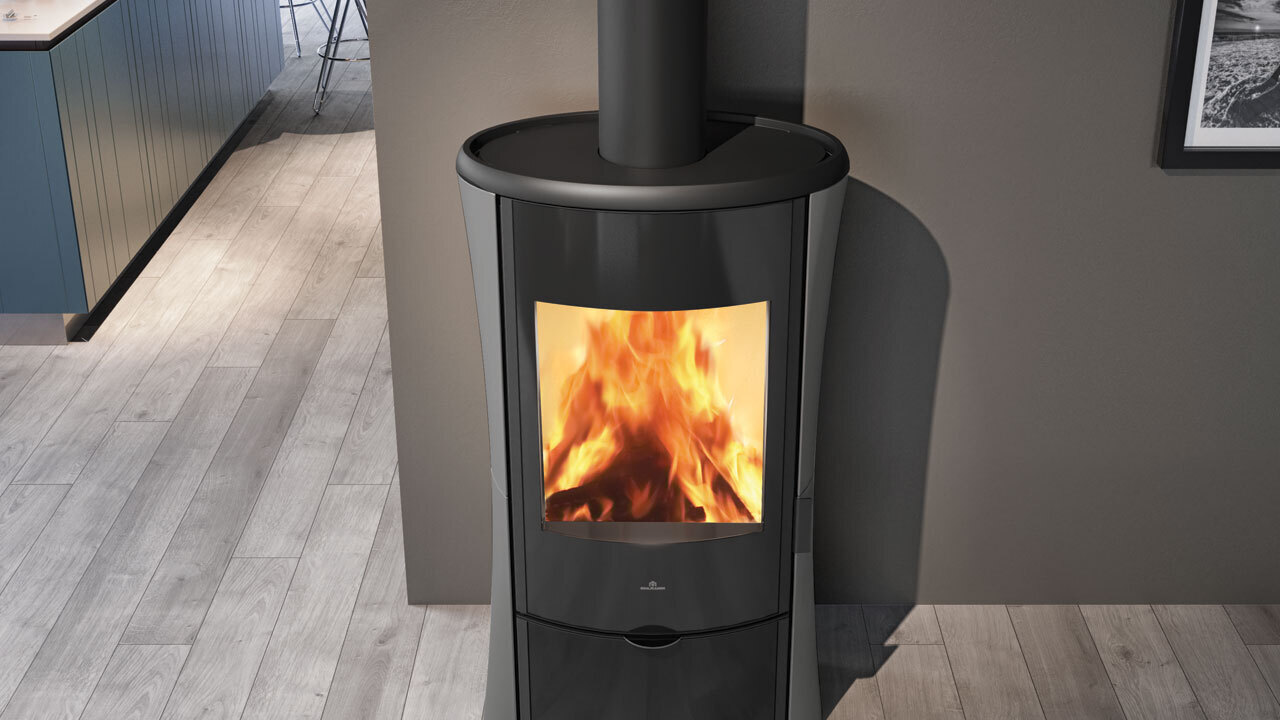

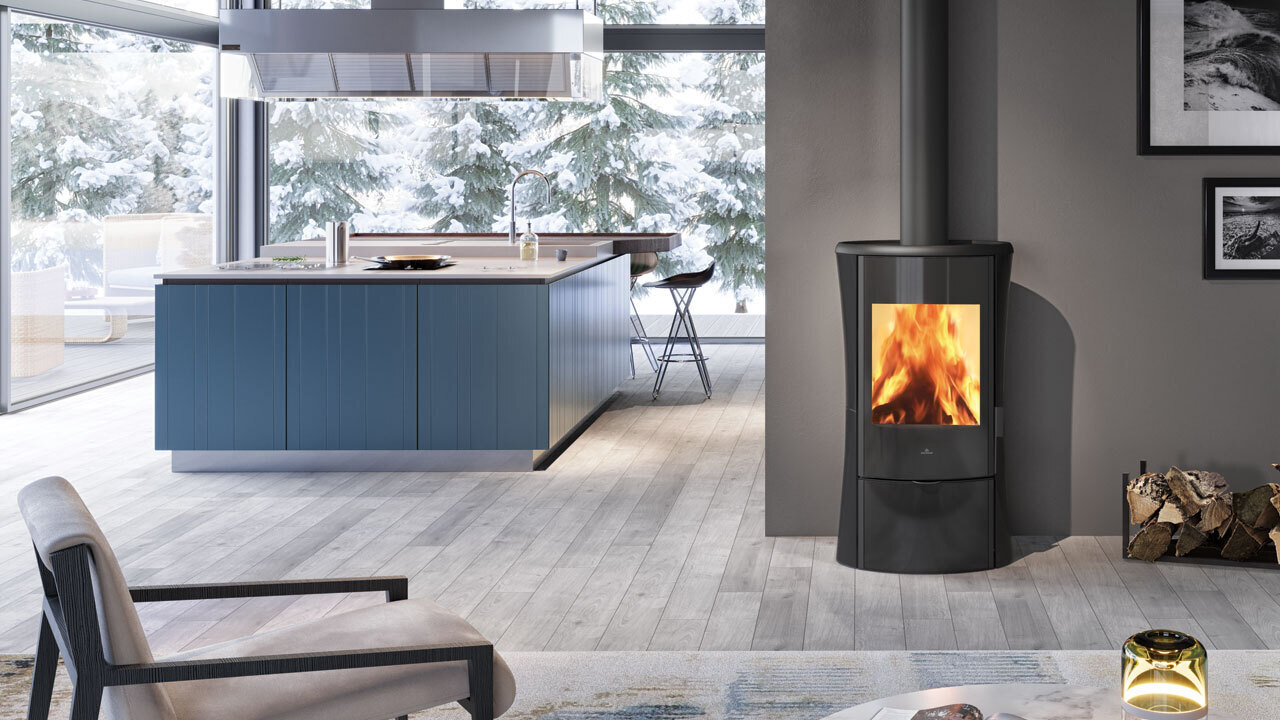

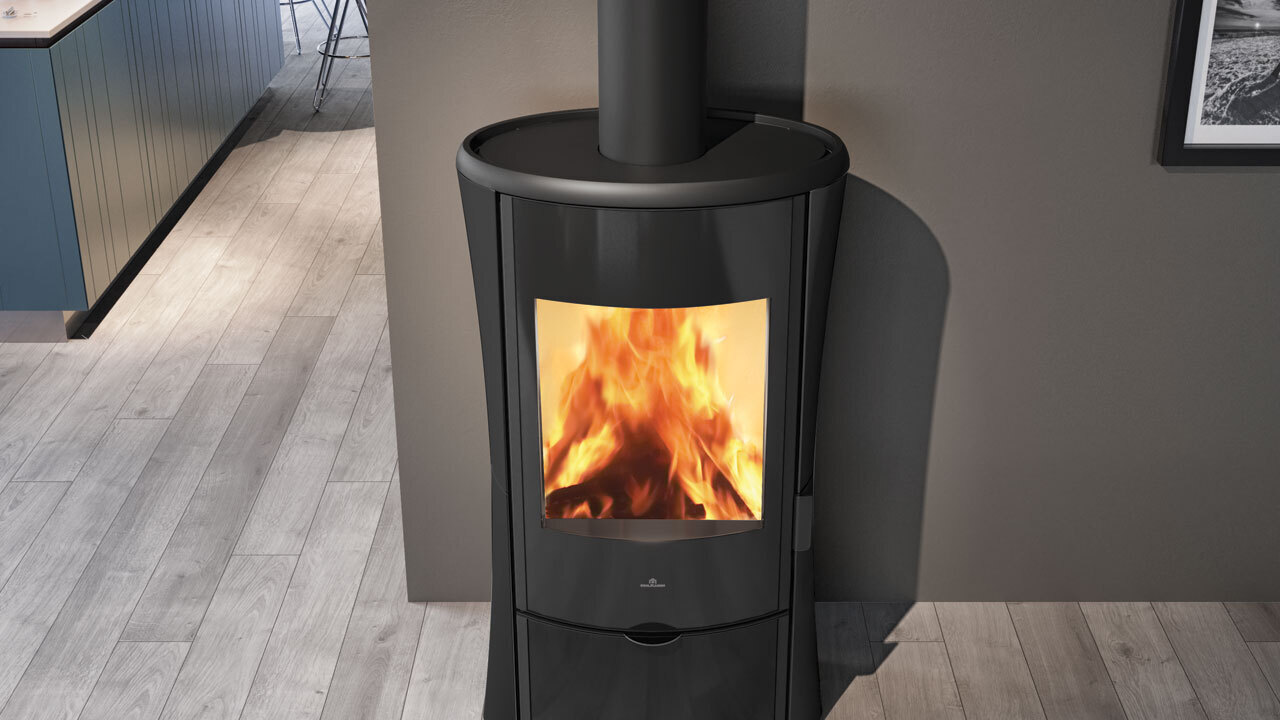

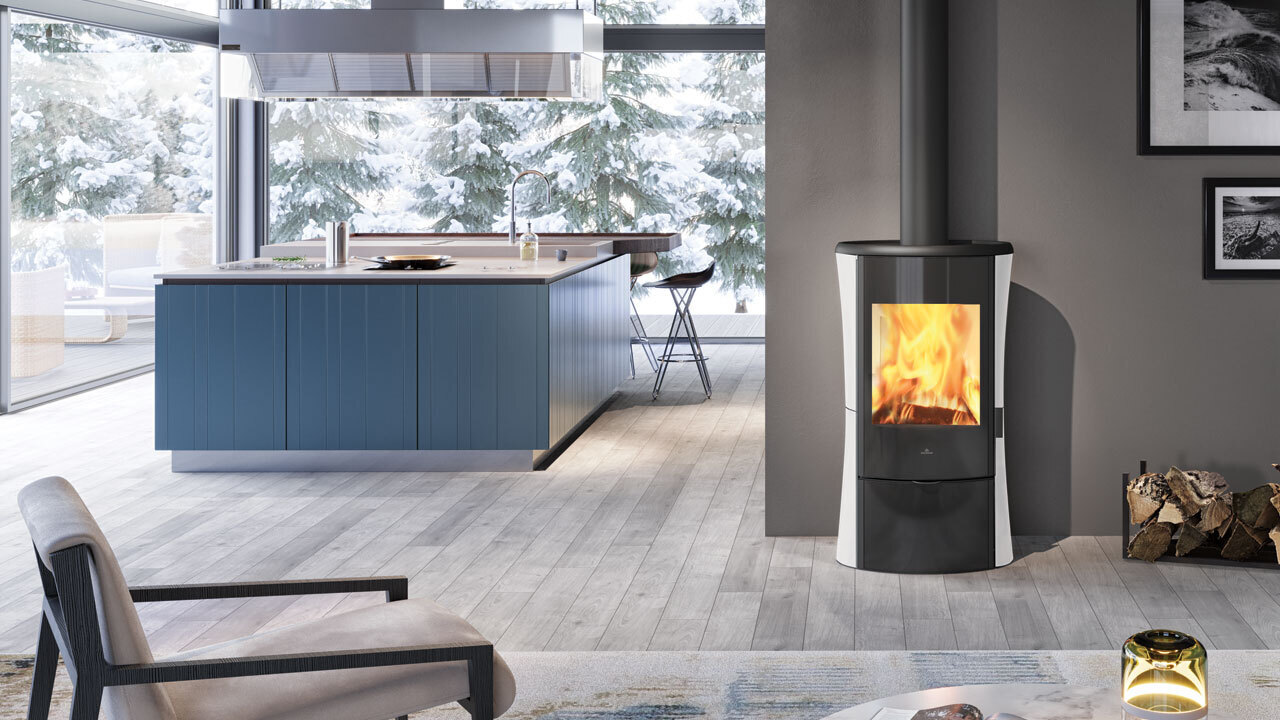

Wood stoves with elliptical cross-section in “hourglass” design, screen-printed glass door with soft-close closure and improves the view of the flame.
• Vermiculite combustion chamber and cast iron fire grate
• Smoke outlet, Ø 15 cm upper and rear, Female
• Storage compartment with practical PUSH-PULL opening
• Practical ash drawer
• 33 cm horizontal wood log
• Black steel
• Grey steel
• Bronze steel
• Matt white ceramic
• Matte black ceramic
• Cast iron combustion chamber
• Optional accessory for installation AIR DIFFUSER
• Optional accessory for installation WITH VENTILATED AIR VENTS
| Technical data |
Klass 6 min/max |
Klass min/max |
|
| width | cm | 63,5 | 63,5 |
| depth | cm | 40,5 | 40,5 |
| height | cm | 113 | 113 |
| fireplace mouth measurement (W x D x H) | cm | 38x17x39 | 38x17x39 |
| useful heat output | kW | 6,6 | 10,1 |
| efficiency | % | 81 | 87,3 |
| fuel consumption (wood) | kg/h | 1,8 | 2,5 |
| Ø combustion product outlet | cm | 15 | 15 |
| Ø external air intake | cm | 10 | 10 |
| total weight | kg | 135 | 135 |
| vol. that can be heated (insul. env. by Law 10/91) | m³ | 170 | 265 |
