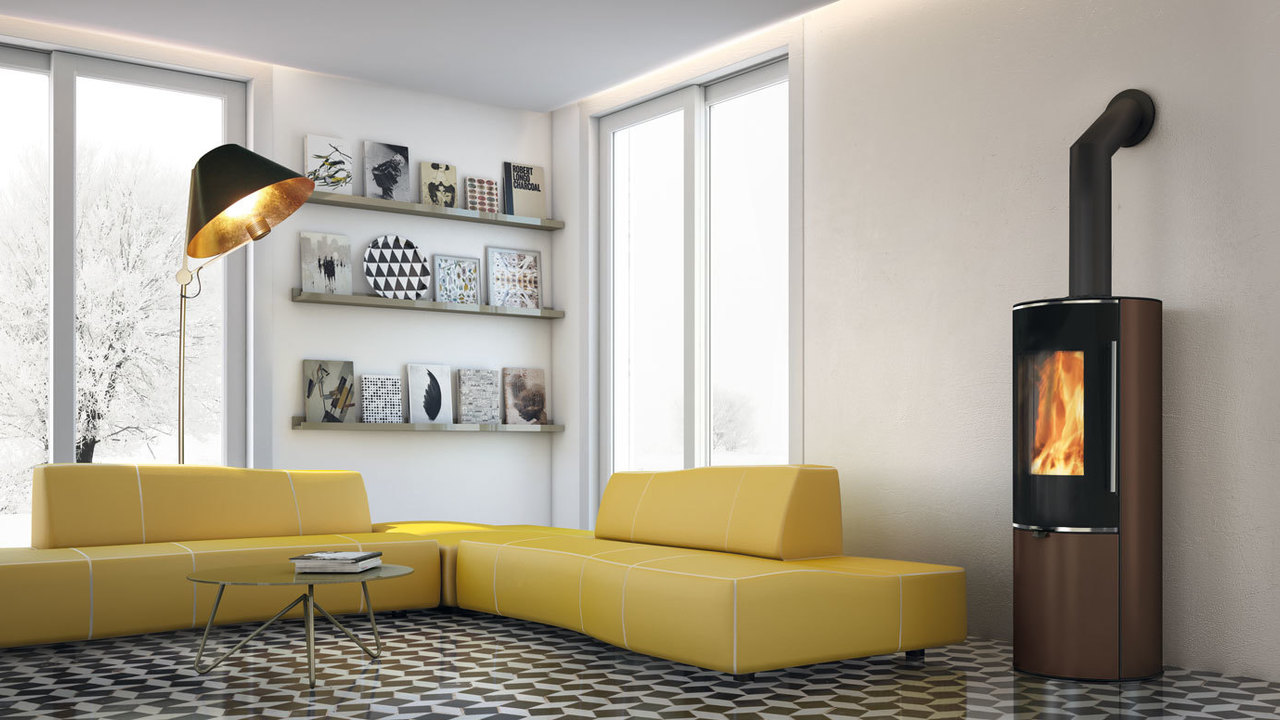

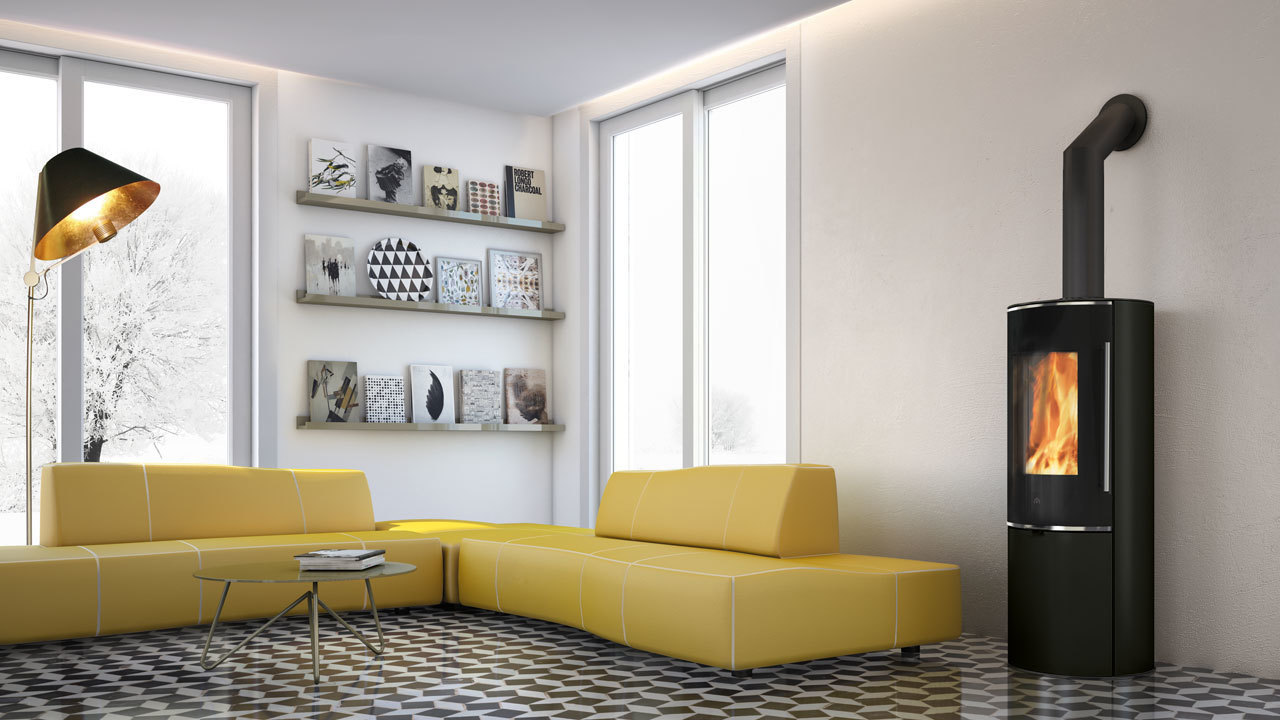

Tally Up Evo

8 kW

Wood stove

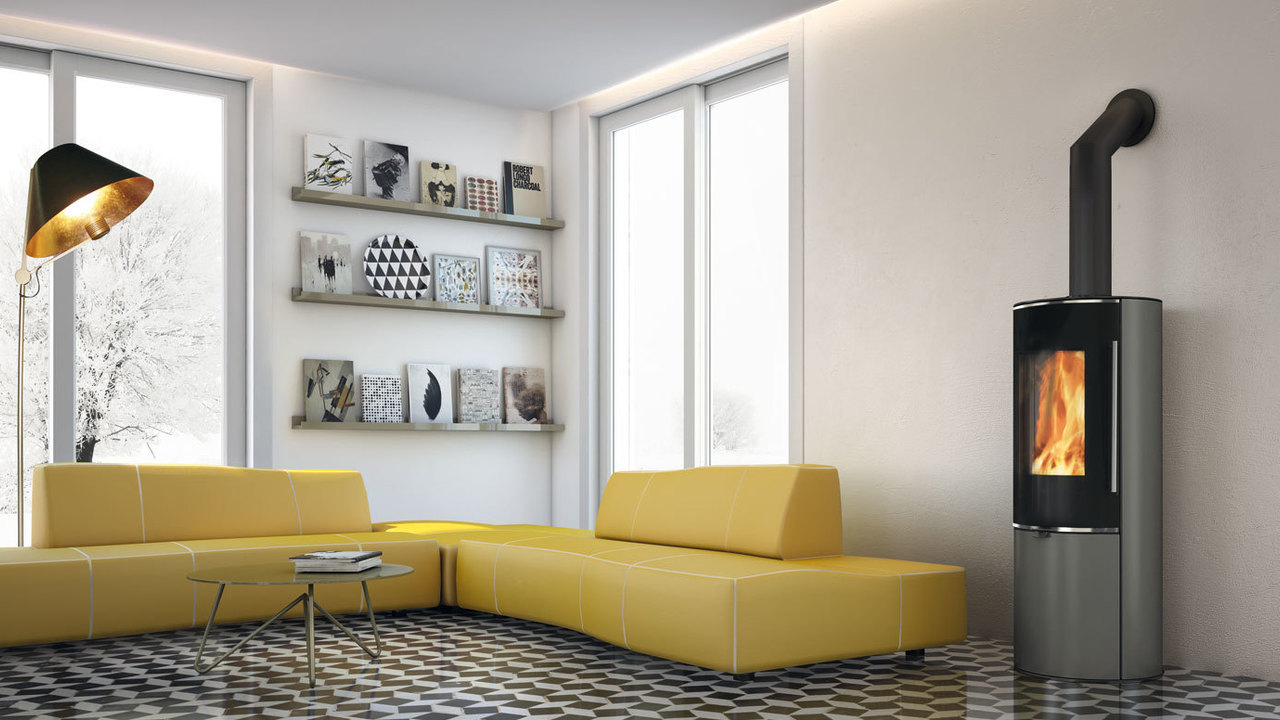

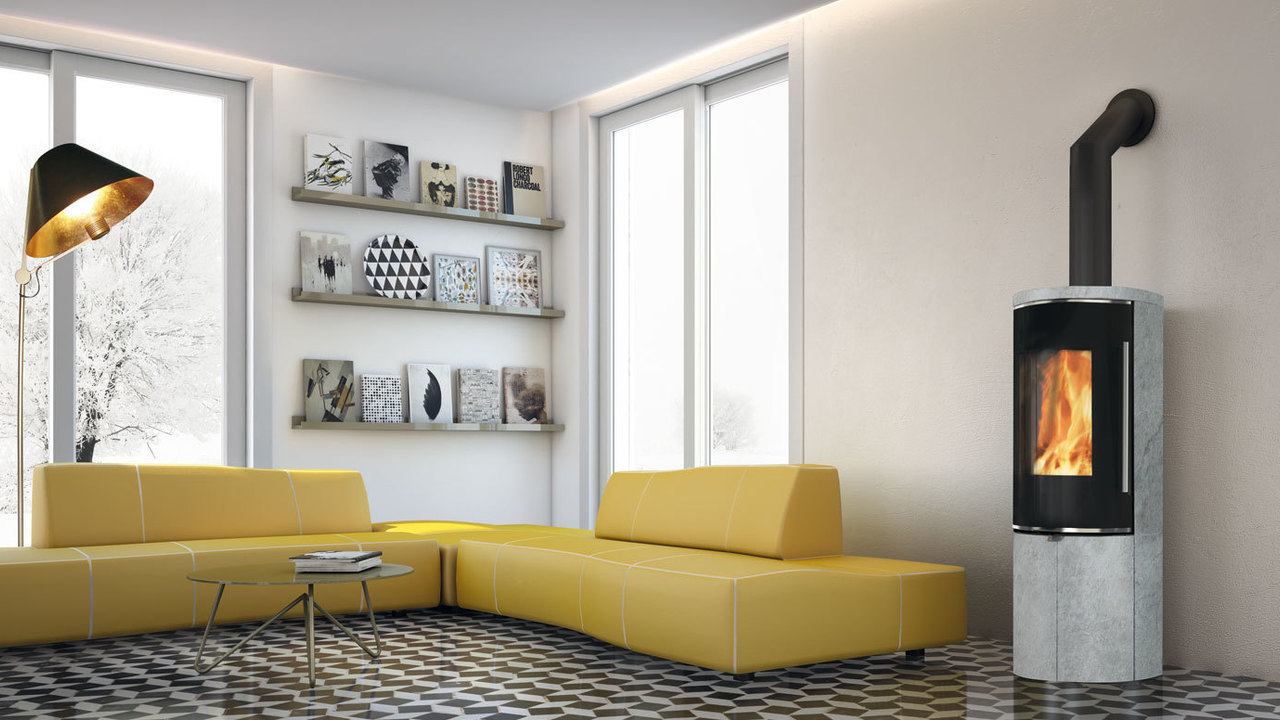

Tally Up Evo

Wood burning stove. Wide glass vertical and round to emphasise the flame

• steel covering color: black, grey, bronze and soapstone
• vermiculite combustion chamber
• top or rear smoke outlet
• automatic door closure with shock absorber
• hot air with natural convection
• combustion air adjustment with control unit
• 33 cm vertical and 25 cm horizontal nozzles
• bottom drawer for wood (up to 30 kg)
• round glass
• black steel wooden drawer kit

OPTIONAL
• AIR DIFFUSER: ductable hot air kit

Technical data min/max
width cm 50
depth cm 50
height cm 128/131
fireplace mouth measurement (W x D x H) cm 29x23x39
useful heat output kW 8,1
efficiency % 87,1
fuel consumption (wood) kg/h 2
Ø combustion product outlet cm 15
Ø external air intake cm 10
total weight kg 158/246
vol. that can be heated (insul. env. by Law 10/91) 210

Wood stove

Other models

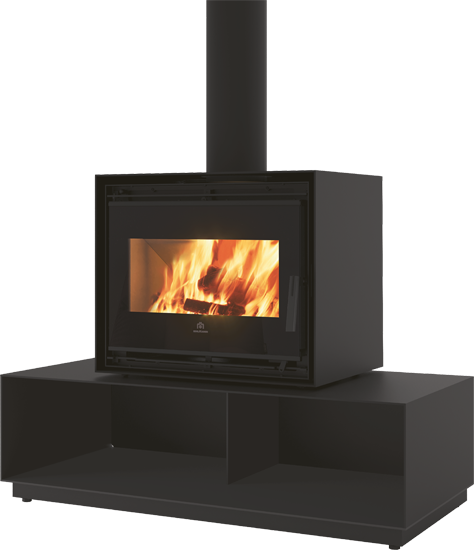

Bench 54

new

Bench 65

new

Body 6
Body

new

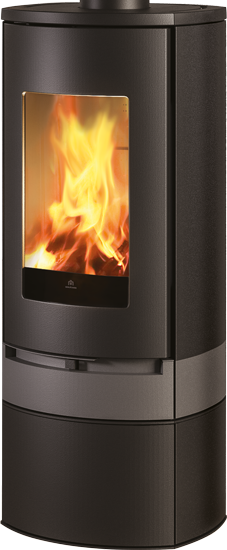

Code Evo

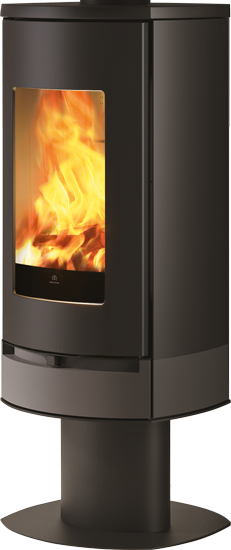

Code J Evo
Klass 6 GL
Klass GL

new

Klass 6
Klass

new

Krio 6 GL
Krio GL

new

Krio 6
Krio

new

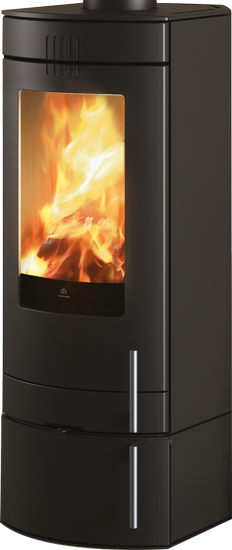

Polo Evo
Polo Open Evo
Tally Evo

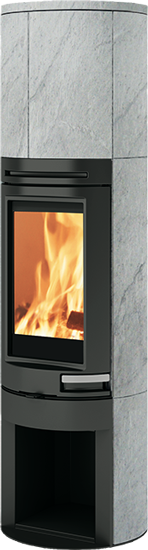

Tally S Evo

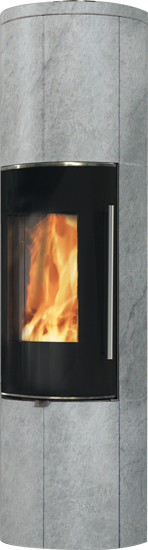

Tally Up S Evo
