Wood insert

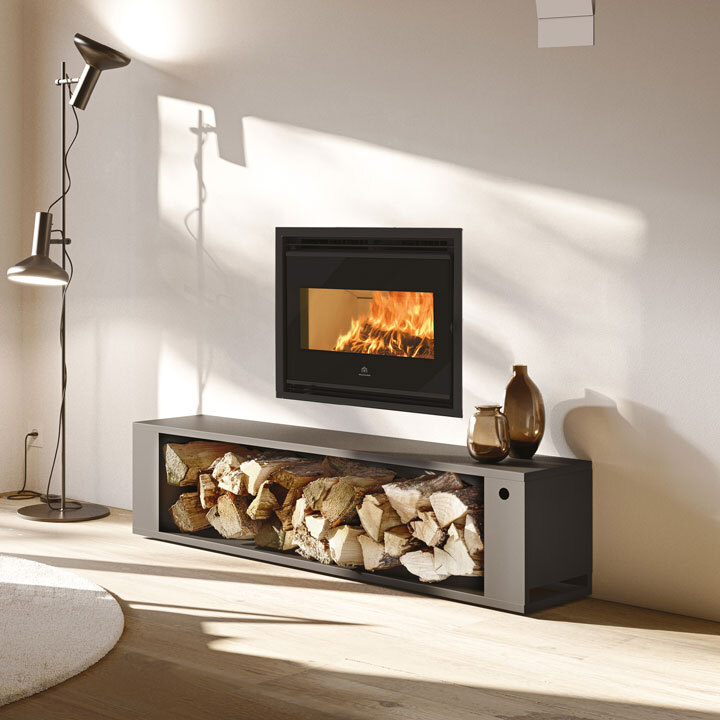

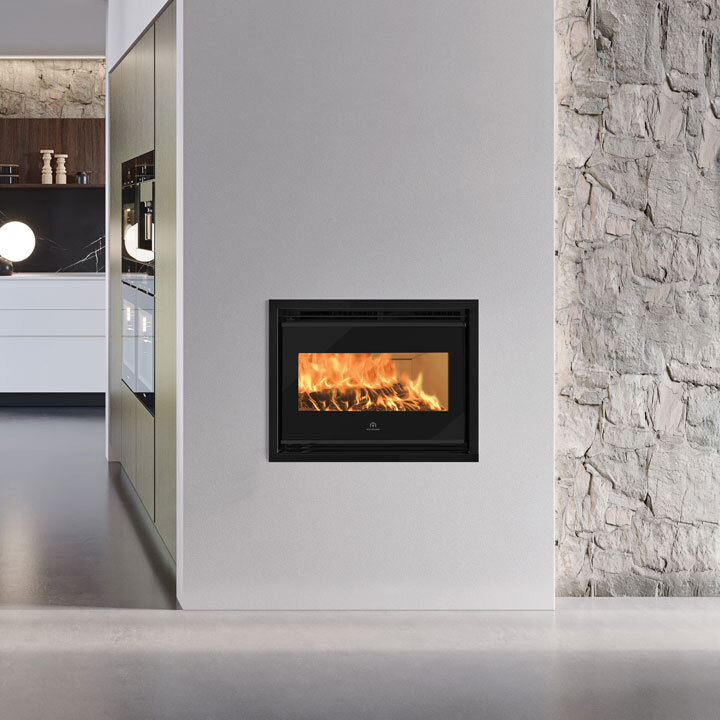

Firebox Evo 54

Ductable wood-burning insert, ideal for recovering old open fireplaces or making new ones, characterised by a sober and essential elegance.

• Black or white Ecokeram hearth and cast iron fire grate
• Smoke outlet Ø 15 cm upper, female
• hot air can be channelled into 2 adjacent rooms using the optional kit
• Glass cleaning system
• Post-combustion system
• practical handles for transport and installation
• side opening (during installation, this can be installed with the door opening either to the right or left).
• Available in N (natural convection) or V (forced ventilation) version with centrifugal fan integrated inside the product and touch screen control unit.

OPTIONAL
• AIR DIFFUSER KIT
• Ducting vents

• Ventilated air vents: the use of one of the two control units is essential.

Technical data min/max
width cm 62
depth cm 45
height cm 53
fireplace mouth measurement (W x D x H) cm 49,5x24x25,5
useful heat output kW 9,4
efficiency % 85,4
fuel consumption (wood) kg/h 2,4
Ø combustion product outlet cm 15
Ø external air intake cm 8
total weight kg 102
vol. that can be heated (insul. env. by Law 10/91) 245
