Wood insert
Firebox Luce Plus

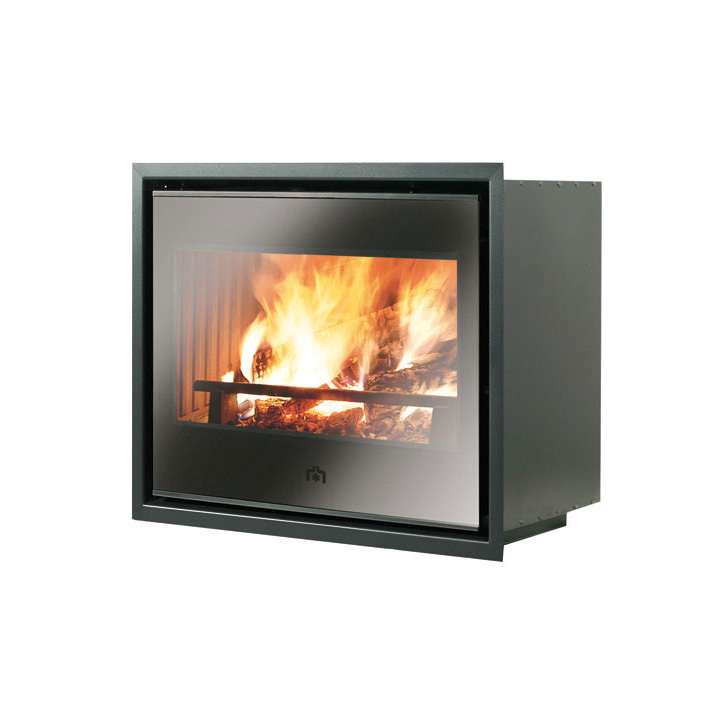

Luce Plus 62 is the wood insert with total glass, steel front and cast iron interior with great care to technical and aesthetic details during realisation.
It is available with forced ventilation air circulation (V model).
It can be combined with ducting vents.
• cast iron combustion chamber
• smoke outlet Ø 20 cm upper
• glass front
• Complete with 2 hot air outlets
• Glass cleaning system
• Post-combustion system
• Height adjustable stand (optional)
| Technical data |
mod. 54 min/max |
mod. 62 min/max |
|
| width | cm | 65 | 70 |
| depth | cm | 45 | 50 |
| height | cm | 61 | 68 |
|
fireplace mouth measurement (W x D x H) |
cm | 52x32x21,5 | 52x32x28,5 |
| useful heat output | kW | 9,6 | 9,6 |
| efficiency | % | 89,5 | 89,5 |
| fuel consumption (wood) | kg/h | 2,3 | 2,3 |
| Ø combustion product outlet | cm | 20 | 20 |
| Ø external air intake | cm | 12 | 12 |
| total weight | kg | 126 | 144 |
| vol. that can be heated (insul. env. by Law 10/91) | m³ | 250 | 250 |
