WOOD FIREPLACE
Windo 120
kW

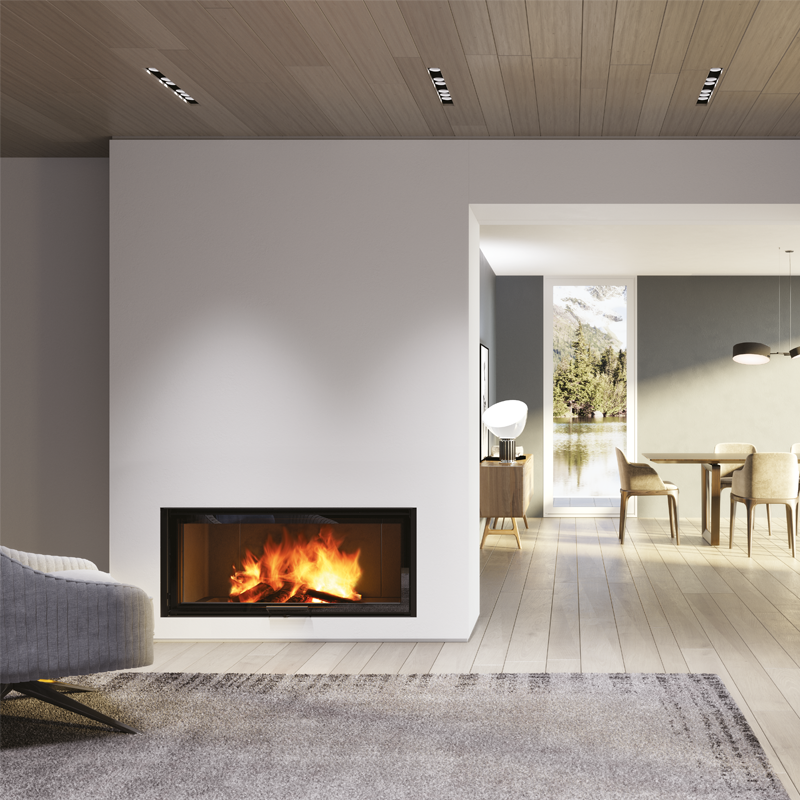

Suitable for a flush-to-floor installation
• Combustion chamber black or white refractory
• smoke outlet ø 18 cm upper, female
• Tilt and ups & downs door opening for the glass cleaning
• Outputs for ducting hot air
- n°4
• Combustion setting lever
• Post-combustion system
• Hot air channelling up to 4 adjoining rooms (optional kit)
• Removable handle
• 4 adjustable feet height
• 4 Pivoting wheels easing handling while fitting
• With natural convection (N) , with 3 different choice options for ventilation: fan kit, Air-diffuser and ventilated air vents.
Optional:
• Frame
• Hood mounting template
• Fan kit (side fitting)
• Kit UNO/bis, DUE/bis, TRE/bis
Kit QUATTRO/bis, CINQUE/bis
• kit AIR DIFFUSER “Adjacent”
• Ducting vents Split, Bent, Origami,
Sharp
| Technical data | min/max | |
| width | cm | 143 |
| depth | cm | 53 |
| height | cm | 135 |
| fireplace mouth measurement (W x D x H) | cm | 114x31x45 |
| useful heat output | kW | 19 |
| efficiency | % | 78 |
| fuel consumption (wood) | kg/h | 5,3 |
| Ø combustion product outlet | cm | 18 |
| total weight | kg | 430 |
| vol. that can be heated (insul. env. by Law 10/91) | m³ | 495 |
