Lumea 9+
Glass
kW
Pellet stove
Lumea 9+
Glass

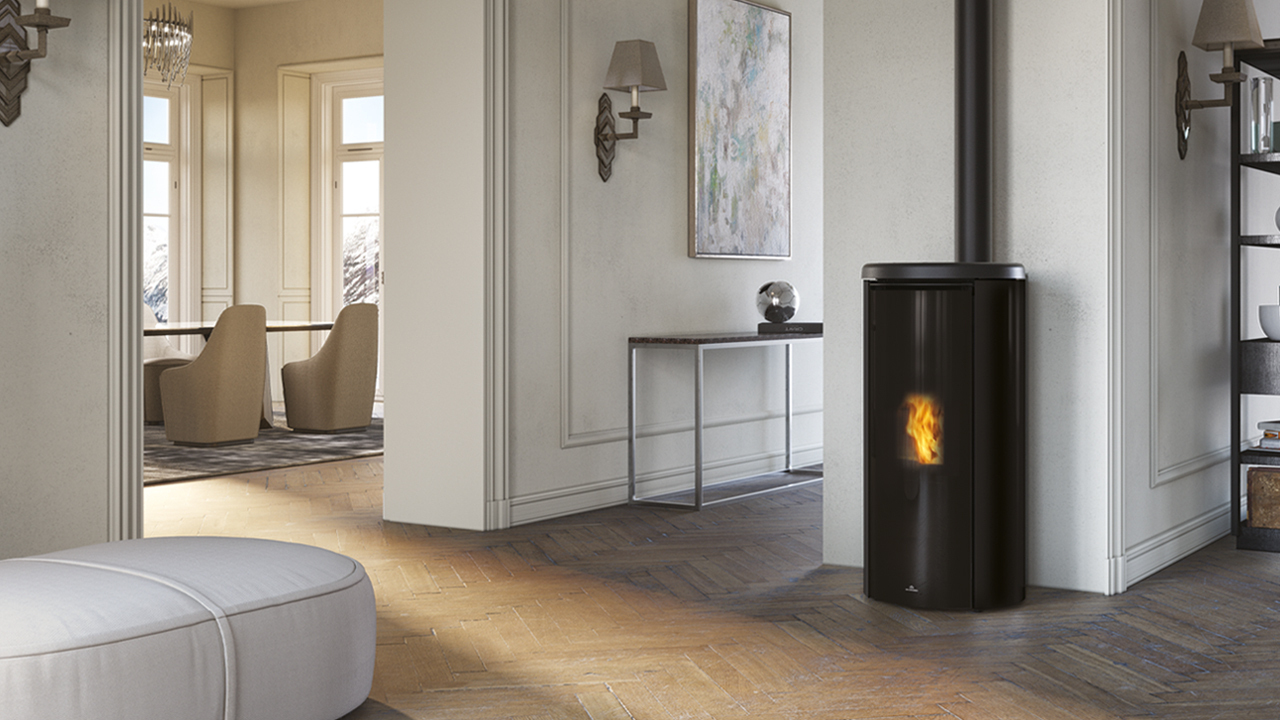

Air Tight pellet stove, suitable for modern passive houses. The fully black "Magic" glass makes the flame visible while hiding the firebox when it's off, for an always elegant design.
Sliding top for feeding pellet.
• cast iron combustion chamber
• smoke outlet upper Ø 8 cm (Lumea 9+ Top)
• smoke outlet upper Ø 8/13 cm coaxial (Lumea 9+ Coax)
• external “light touch” door in Magic glass
• push-pull opening
• double pellet tank closing system
• Daily/weekly program
• EASY TIMER function
• RELAX function (Deactivatable hot air ventilation)
• “Mind remote” remote control
• System The Mind with built-in WIFI
• System Leonardo
• Rear hot air duct Ø 6 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling
AVAILABLE MODELS
• Black glass sides

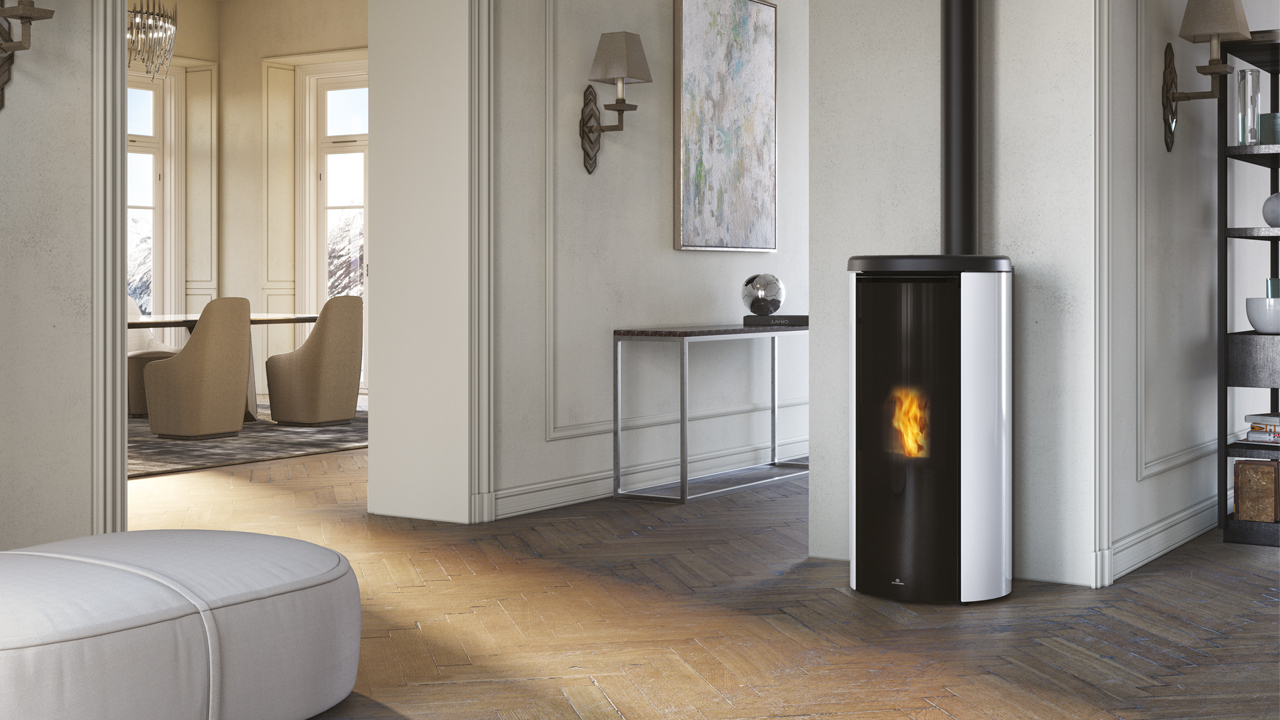

• White glass sides
• Warm air ducting kit
• Vents Split, Bent, Origami, Sharp
• Ducted air probes + domotic
• Ø 6 air diverter kit,
| Technical data | min/max | |
| width | cm | 54 |
| depth | cm | 57 |
| height | cm | 112 |
| useful output | kW | 2,7/9,6 |
| efficiency | % | 90,7 |
| fuel consumption (pellet) | kg/h | 0,6/2,2 |
| tank capacity | kg | 18 |
| autonomy | h | 8/30 |
| Ø combustion product outlet | cm | 8/13 |
| Ø external air intake | cm | 6 |
| total weight | kg | 138/141 |
| vol. that can be heated | m³ | 250 |
